Heatcraft® Modu-Coil (modular coils) offer alternative replacement solutions for situations where one-piece coils are bigger than the space needed to maneuver them into their operation location.

The Modu-Coil is a fluid coil that incorporates many of the features found in Heatcraft®’s Fluid Heating and Cooling coils built in two modules or sections. This unique construction makes it possible for each module to fit in elevators and tight spaces – thus making the coil’s transportation and installation easier. Heatcraft® Modu-Coil’s greatest benefit is that it eliminates the need for demolishing walls or altering a building’s structure to replace a coil. This can result in huge savings on expensive demolition/remodeling and crane services, while at the same time reducing system down time.

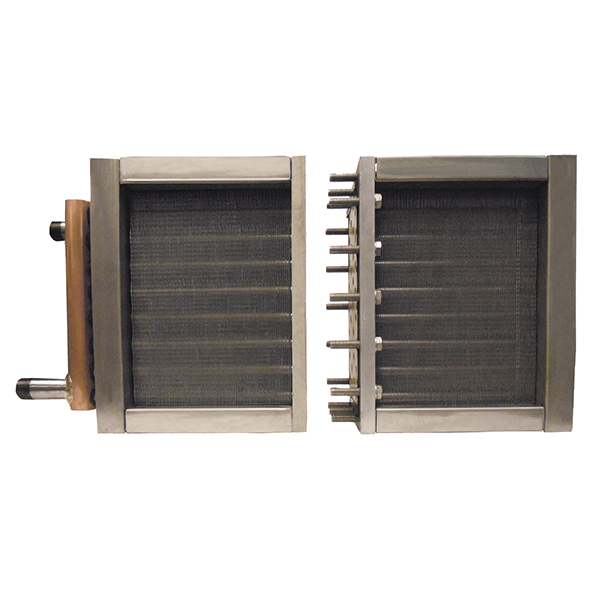

Each of the two modular sections are constructed with one tube plate where each section’s open tubes terminate. This construction allows for the two sections and one gasket to be aligned using the factory pre-installed bolts to complete the coil assembly.

Modu-Coil Construction Americas EMEA APAC
Tubing 1/2”, 5/8” O.D. Copper, 5/8″ Cupronickel, Stainless Steel, Carbon Steel, Admiralty Brass N/A N/A
Circuit Type Quarter, Half, Three Quarter, Single, One and one half, Double, Triple or Custom N/A N/A
Rows 1, 2, 3, 4, 5, 6, 8, 10, 12 N/A N/A
Fin Surface Sine Wave (corrugated), New Ripple (peak and valley) or Flat N/A N/A
Tube Patterns Various N/A N/A
Casing / Mounting Galvanized Steel, Stainless Steel, Carbon Steel, Copper or Aluminum N/A N/A
Connections Carbon Steel, Stainless Steel, Red Brass, Copper (Braze, MPT, FPT, Victaulic, Welded) N/A N/A
Vents & Drains Standard N/A N/A
Fin Material Aluminum, Copper all tube sizes
Stainless Steel, Carbon Steel – 5/8″ Only
N/A N/A
Options Electro-Fin coating, Bolting Flanges N/A N/A
