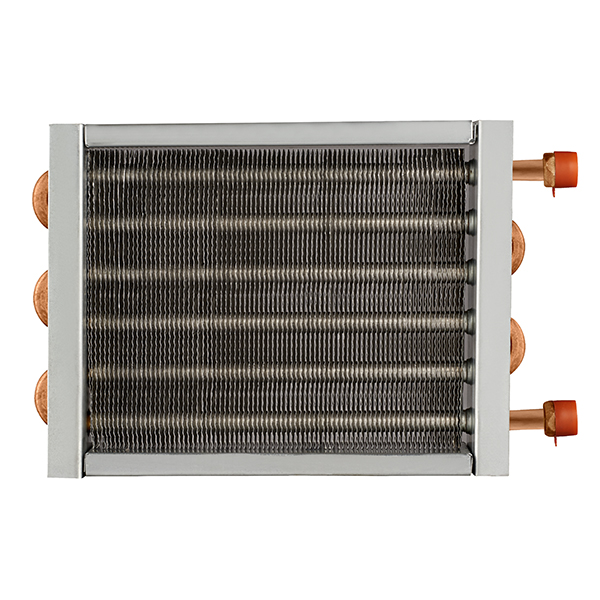

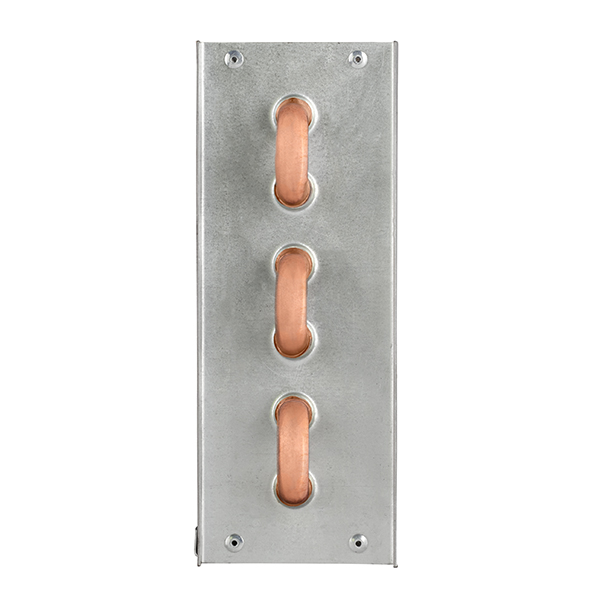

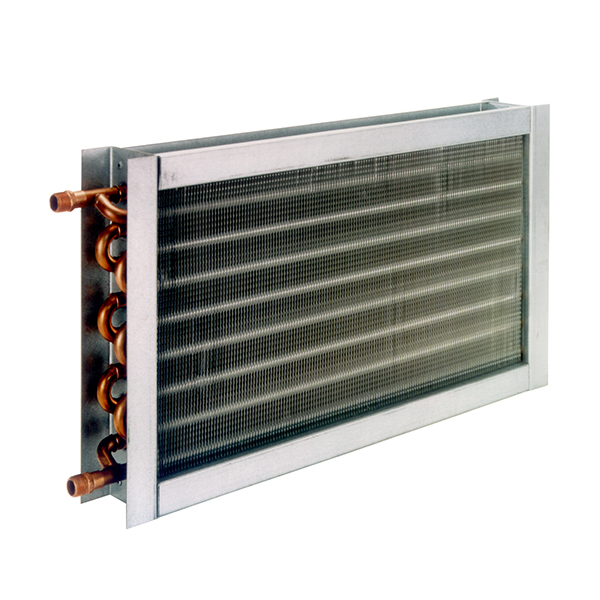

Heatcraft® Duct/Booster coils are duct-mounted reheat coils used with hot water or steam for general heating applications. Booster coils are provided with a variety of casing configurations, including fully flanged, slip and drive, or end plates only. A variety of fin designs are available for optimizing heat transfer performance and air side resistance.

The most common materials for booster coils are copper tubes matched with an aluminum fin and a galvanized steel casing or frame that allows the buyer to use “standard” coil materials to save money. Connections are typically copper, steel, or brass. Optional custom solutions can be designed and provided by Modine to meet your requirements for harsh operating conditions.

Duct Coil Construction Americas EMEA APAC
Tubing 3/8”, 1/2” O.D. Cu & 5/8” O.D. Cu, CuNi, AD Brass 1/2”, 15mm (P40) O.D. Copper N/A
Circuit Type Single, Double Upon request N/A
Rows 1, 2 1, 2, 3, 4, 6, 8, 10, 12 N/A
Fin Surface Sine Wave (corrugated), New Ripple (peak and valley) or Flat Louvered or flat (slightly louvered) N/A
Tube Patterns Various Various N/A
Casing / Mounting Galvanized Steel, Stainless Steel, Carbon Steel, Copper or Aluminum Galvanized Steel, Stainless Steel, AcidProof, AluZink® or Aluminum N/A
Connections Copper Sweat, Carbon Steel or Stainless Steel Copper, Steel threaded N/A
Vents & Drains Optional Optional N/A
Fin Material Aluminum, Copper all tube sizes                                                Stainless Steel, Carbon Steel – 5/8″ Only Aluminum, Copper, Corropaint (epoxy coated), Pre tinned copper, hydro paint N/A
Options Electro-Fin coating, Flanged or Slip & Drive casing, Vent & Drain ElectroFin® E-Coat, Heresite® coatings, Flanged connection, Turned or L-header, mist eliminator N/A
Links Fluid Catalog
Fluid Coil Specification
Fluid Coil Installation, Operation and Maintenance
Certified Drawing Booster Coil
