Condenser Coils

Condenser Coils

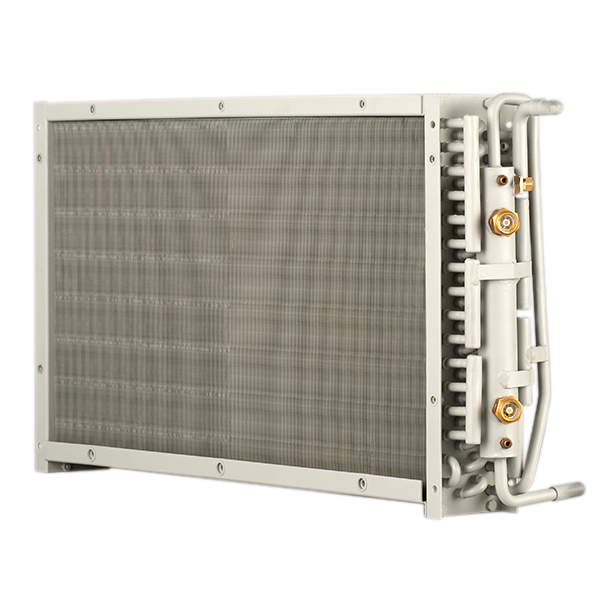

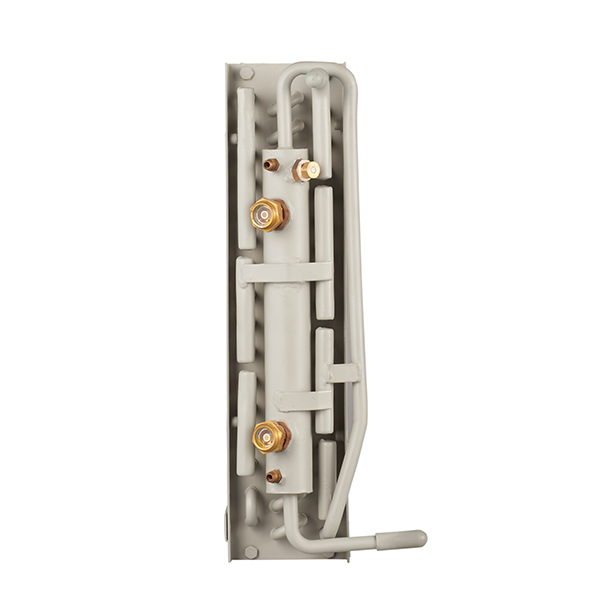

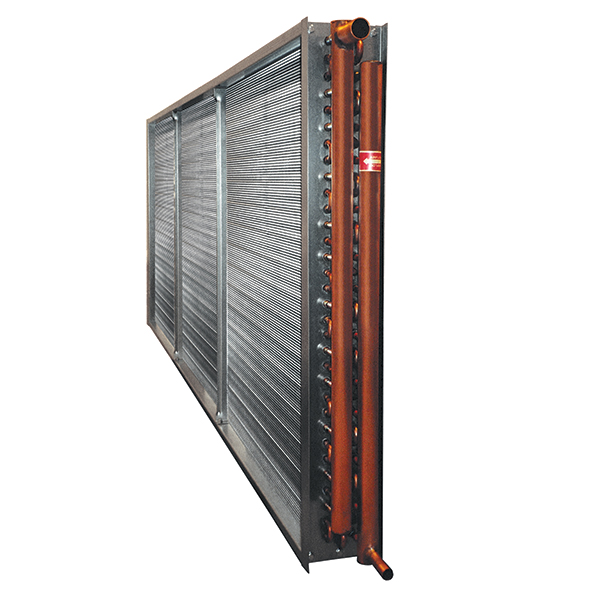

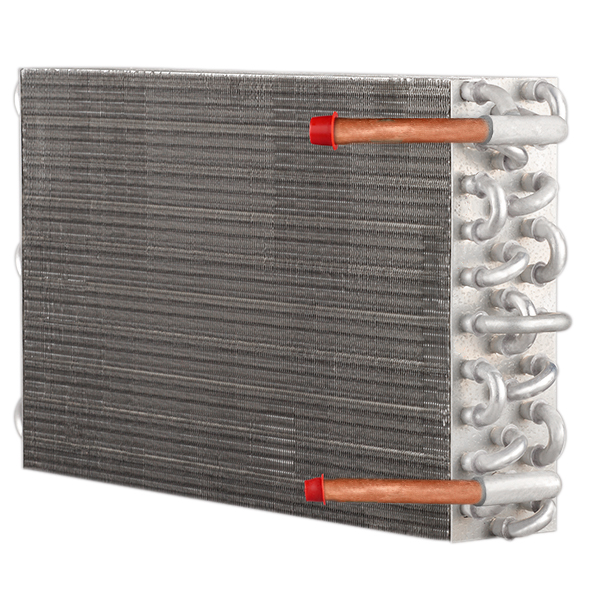

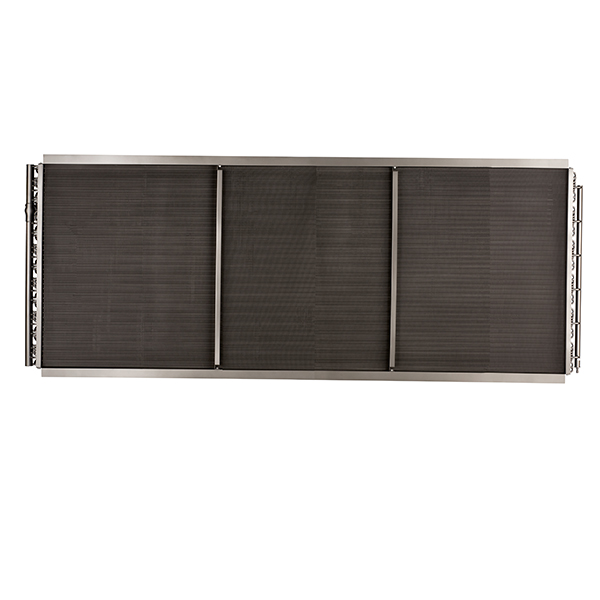

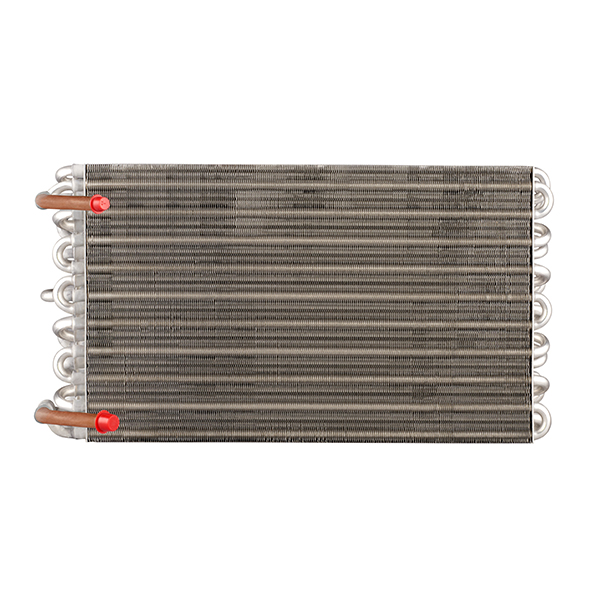

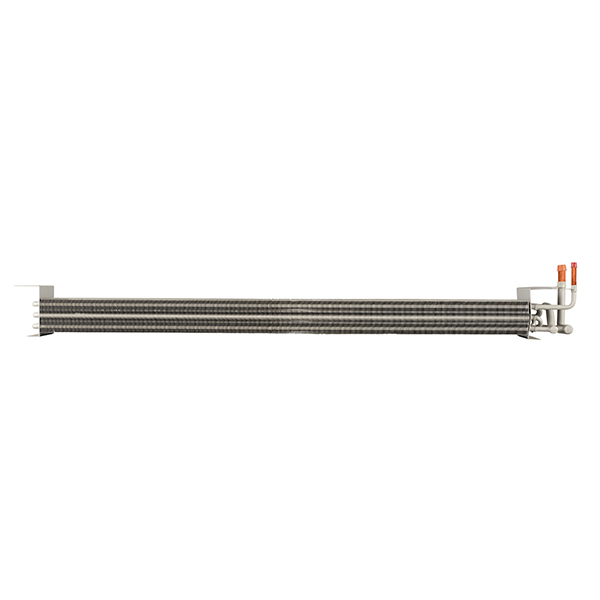

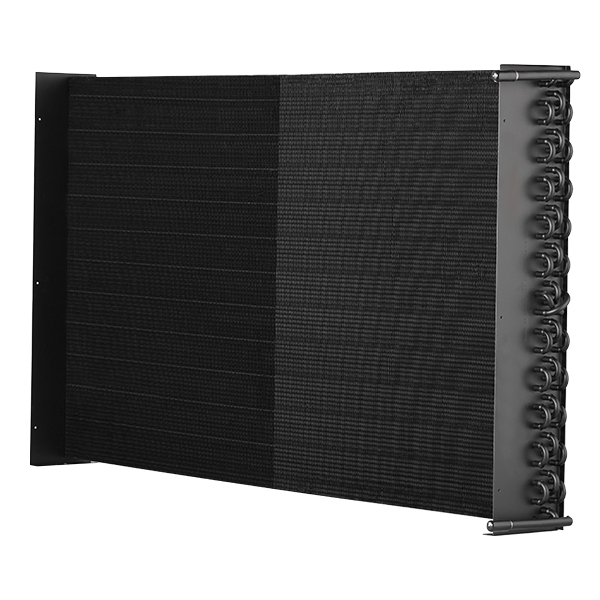

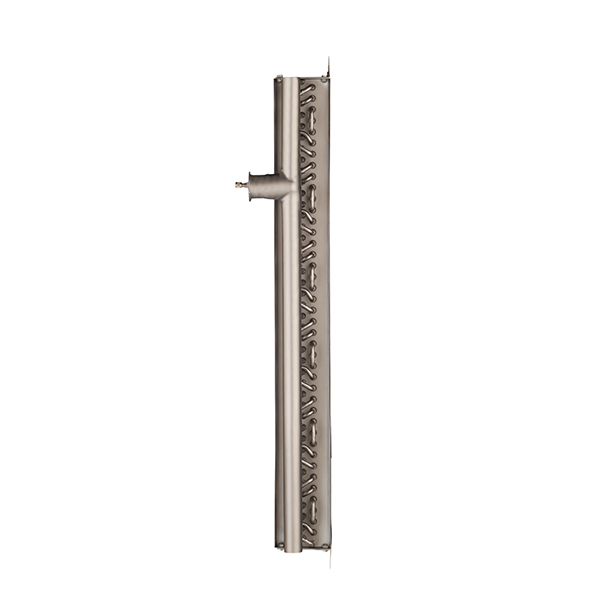

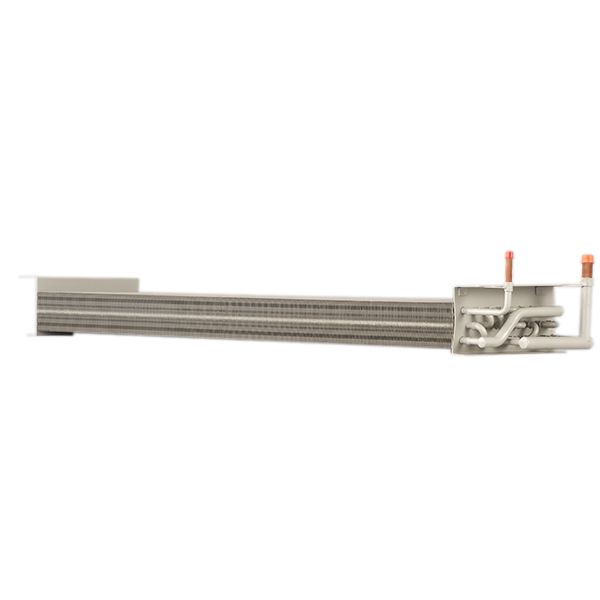

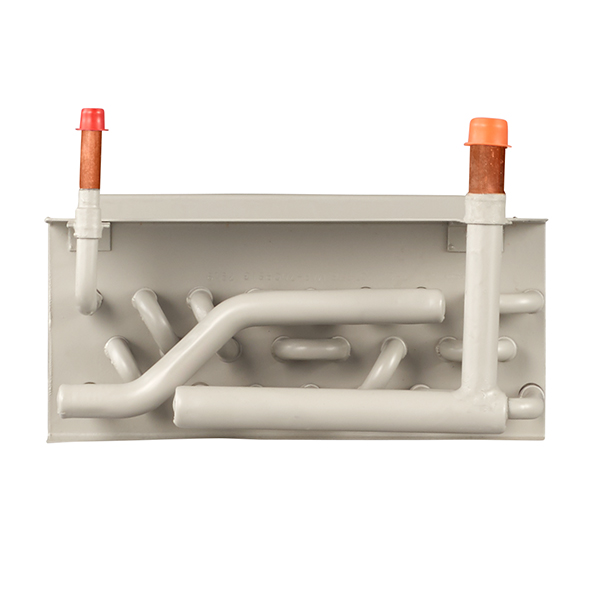

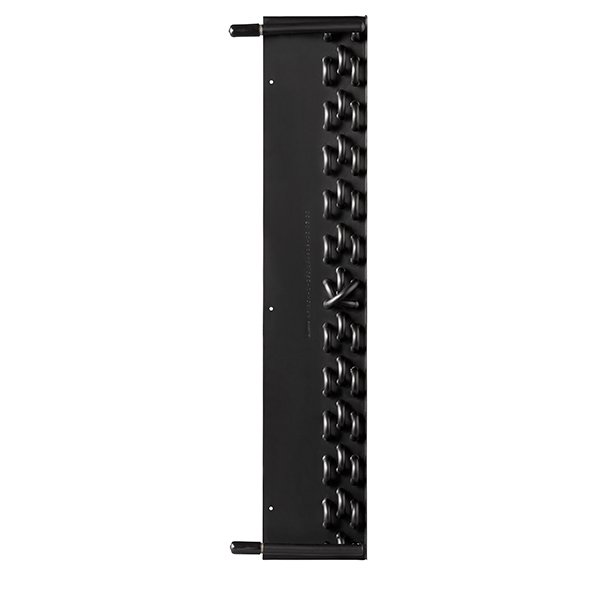

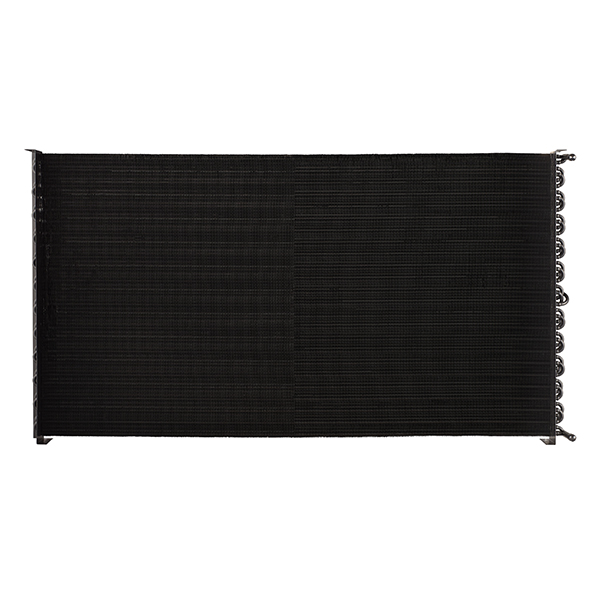

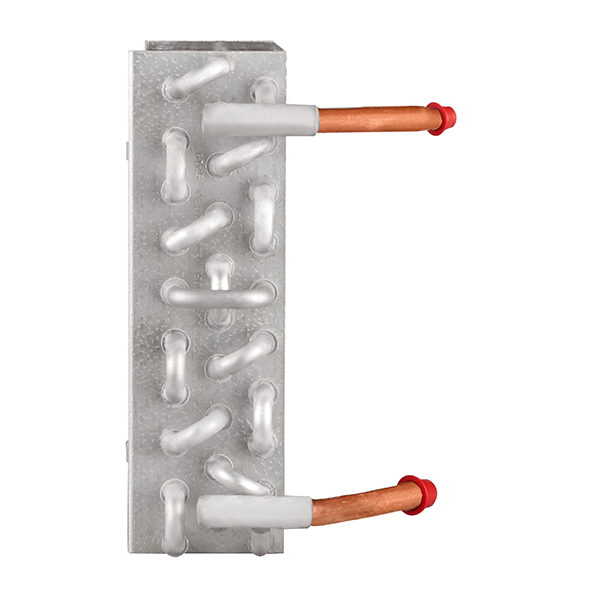

Heatcraft® Condenser coils can be applied for various duty requirements, including de-superheating, reheating, and traditional condensing applications.

Whether the condenser coil is in an HVAC or refrigeration application, its function is the same. One of the four primary components in a vapor-compression refrigeration system, the condensing coil is usually located outside of the conditioned space with the compressor and condenser fan.  The evaporator and thermostatic expansion valve or capillary tube are usually located within the conditioned space.

Each of these components do their part in a continuous loop to convert refrigerant from a gas to liquid (condenser) and liquid to a gas (evaporator) and move heat from the conditioned space to un-conditioned or outdoor space.

Condenser – This coil takes the superheated vapor from the compressor and cools that vapor down to saturation. It then completely condenses all of the vapor into liquid and continues to sub-cool the resulting liquid to a desired temperature below saturation.

Reheat – This is a hot gas reheat coil which takes the superheated vapor from the compressor and cools the vapor down to saturation. It then continues to condense a requested percentage of that vapor to a liquid.

Desuperheater – This coil takes the superheated vapor from the compressor and cools that vapor down to a requested temperature above saturation.

Condenser Coil Construction Americas EMEA APAC
Tubing 3/8”, 1/2” O.D. Cu & 5/8” O.D. Cu, CuNi, AD Brass 1/2”, 15mm (P40) O.D. Copper N/A
Circuit Type single or multiple compressor circuits Upon request N/A
Rows 1, 2, 3, 4, 5, 6, 8, 10, 12 2, 3, 4, 6 N/A
Fin Surface Sine Wave (corrugated) , New Ripple (peak and valley) or Flat Louvered or flat (slightly louvered) N/A
Tube Patterns Various Various N/A
Casing / Mounting Galvanized Steel, Stainless Steel, Carbon Steel, Copper or Aluminum Galvanized Steel, Stainless Steel, AcidProof, AluZink®  or Aluminum N/A
Connections Various Copper N/A
Fin Material Copper, Aluminum, Pre-Coated Corrosive Resistant Aluminum, Copper, Corropaint (epoxy coated), Pre tinned copper, hydro paint N/A
Options Electro-Fin coating ElectroFin® E-Coating, Heresite® Coatings N/A
Links Condenser Coil Specification
Condenser Coil Installation, Operation and Maintenance
Certified Drawing: Condenser/Reheat
VENTILATION HEAT EXCHANGER
Tube Patterns
N/A
Condenser Coil Construction Americas EMEA APAC
Tubing 5mm, 1/4″, 7mm,  5/16″, 3/8”, 1/2” O.D. Cu & 5/8” O.D. Cu, CuNi, AD Brass 5mm, 7mm, 7,2mm, 12mm, 15mm, 5/16″,  3/8″, 5/8″, 1/2″ 5mm, 7mm, 7.2mm, 5/16″, 3/8”, 1/2” & 5/8” O.D. Copper & 5/8″ O.D. St Stl
Circuit Type Single or multiple compressor circuits or custom Upon request As requested supporting single or multiple compressor circuits
Rows 1, 2, 3, 4, 5, 6, 8, 10, 12 1 to 6 (over upon request) 2, 3, 4, 5, 6, 8, 10, 12
Fin Surface Louver, Lance, Sine Wave (corrugated) , New Ripple (peak and valley) or Flat V-Waffle, Sine wave, Flat / Louvered, Lanced, Slit Louvered,Sine Wave (corrugated) , New Ripple (peak and valley) or Flat
Tube Patterns Various Various Various
Casing / Mounting Galvanized Steel, Stainless Steel, Carbon Steel, Copper or Aluminum Al, Galvanized or Stainless Steel, AcidProof, AluZink®, Cu, Brass Galvanized Steel, Stainless Steel, Carbon Steel, Copper or Aluminum
Connections Braze, Flare, Fitting, Other Customer Specified Copper, Iron Braze, Flare, Fitting
Fin Material Aluminum, Copper, Pre-coated; Corrosion resistant, Epoxy Al, Cu, Pre-painted Al, Tinned Cu, Hydrophilic Al, Corropaint Aluminum, Copper, Corropaint (epoxy coated), hydro paint
Options Electro-Fin coating ElectroFin® E-Coat, Heresite® coatings, Alt fin spacing, Bent coils E-Coat
Links Condenser Coil Specification
Condenser Coil Installation, Operation and Maintenance
Certified Drawing: Condenser/Reheat
VENTILATION HEAT EXCHANGER
Tube Patterns
N/A
