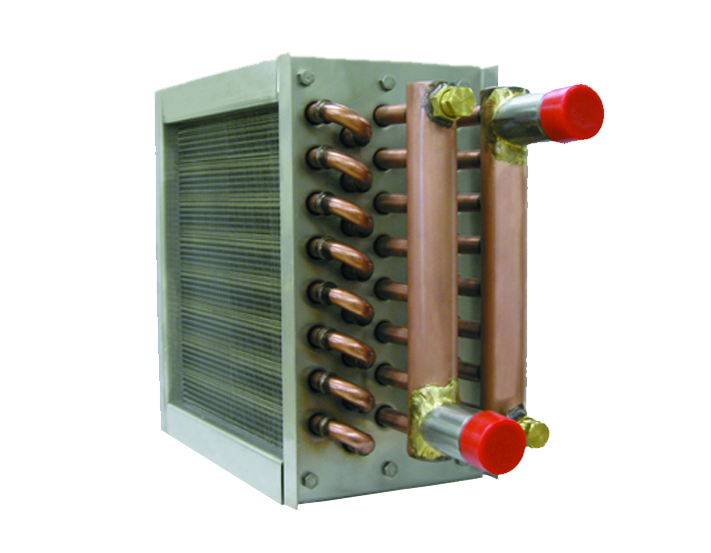

Desaturation Coils

Desaturation Coils

Heatcraft® Desaturation coils are used in close control cooling applications, such as hospitals, clean rooms, and science or research laboratories. Heatcraft® offers a combination fluid cooling/reheat coil in one assembly that will cool, dehumidify, and reheat the air to the desired exit air temperature and humidity level. These coils incorporate many of the features found in Heatcraft®’s Fluid Heating and Cooling coils. However, because of a unique fluid circuit developed by Heatcraft®, the customer is provided with a single supply and return connection.

Desaturation Coil Construction Americas EMEA APAC
Tubing 3/8”, 1/2” O.D. Cu & 5/8” O.D. Cu, CuNi, St Stl, Carbon Stl, AD Brass N/A N/A
Circuit Type Quarter, Half, Three Quarter, Single, One and one half, Double, Triple or Custom N/A N/A
Rows 1, 2, 3, 4, 5, 6, 8, 10, 12 N/A N/A
Fin Surface Sine Wave (corrugated), New Ripple (peak and valley) or Flat N/A N/A
Tube Patterns Various N/A N/A
Casing / Mounting Galvanized Steel, Stainless Steel, Carbon Steel, Copper or Aluminum N/A N/A
Connections Carbon Steel, Stainless Steel, Red Brass, Copper (Braze, MPT, FPT, Victaulic, Welded) N/A N/A
Vents & Drains Standard N/A N/A
Fin Material Aluminum, Copper all tube sizes
Stainless Steel, Carbon Steel – 5/8″ Only
N/A N/A
Options Electro-Fin coating, Bolting Flanges N/A N/A
Links Fluid Catalog
Fluid Coil Specification
Fluid Coil Installation, Operation and Maintenance
Desaturation Coil Article
Certified Drawing: Cooling Coil > 2Row
Certified Drawing: 1 and 2 Row Fluid Coils
Certified Drawing: Desaturation Coil
Certified Drawing: Cleanable > 2 Row
Certified Drawing: Mist Eliminator
N/A N/A
Desaturation Coil Construction Americas EMEA APAC
Tubing 3/8”, 1/2” O.D. Cu & 5/8” O.D. Cu, CuNi, St Stl, Carbon Stl, AD Brass N/A 3/8” O.D. Cu & 1/2”, 5/8” O.D. Cu, CuNi, St Stl
Circuit Type Quarter, Half, Three Quarter, Single, One and one half, Double, Triple or Custom N/A Quarter, Half, Three Quarter, Single, One and one half, Double, Triple or Custom
Rows 1, 2, 3, 4, 5, 6, 8, 10, 12 N/A 1, 2, 3, 4, 5, 6, 8, 10, 12
Fin Surface Louver, Lance, Sine Wave (corrugated) , New Ripple (peak and valley) or Flat N/A Louver, Sine Wave (corrugated) , New Ripple (peak and valley) or Flat
Tube Patterns Various N/A Various
Casing / Mounting Galvanized Steel, Stainless Steel, Carbon Steel, Copper or Aluminum N/A Galvanized Steel, Stainless Steel, Carbon Steel, Brass or Aluminum
Connections Carbon Steel, Stainless Steel, Red Brass, Copper (Braze, MPT, FPT, Victaulic, Welded) N/A Carbon Steel, Stainless Steel, Red Brass, Copper (Braze, MPT, FPT, Victaulic, Welded)
Vents & Drains Standard N/A Standard
Fin Material Aluminum, Copper all tube sizes
Stainless Steel, Carbon Steel – 5/8″ Only
N/A Al, AlMg, Copper all tube sizes,
Stainless Steel-5/8″ Only
Options Electro-Fin coating, Bolting Flanges N/A E-coating, Universal Hand, TurboSpirals
Links Fluid Catalog
Fluid Coil Specification
Fluid Coil Installation, Operation and Maintenance
Desaturation Coil Article
Certified Drawing: Cooling Coil > 2Row
Certified Drawing: 1 and 2 Row Fluid Coils
Certified Drawing: Desaturation Coil
Certified Drawing: Cleanable > 2 Row
Certified Drawing: Mist Eliminator
N/A N/A
