Fluid Coils

Fluid Coils

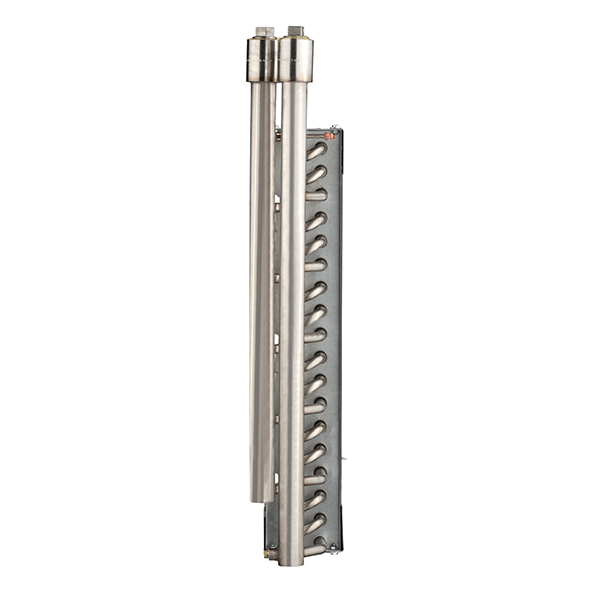

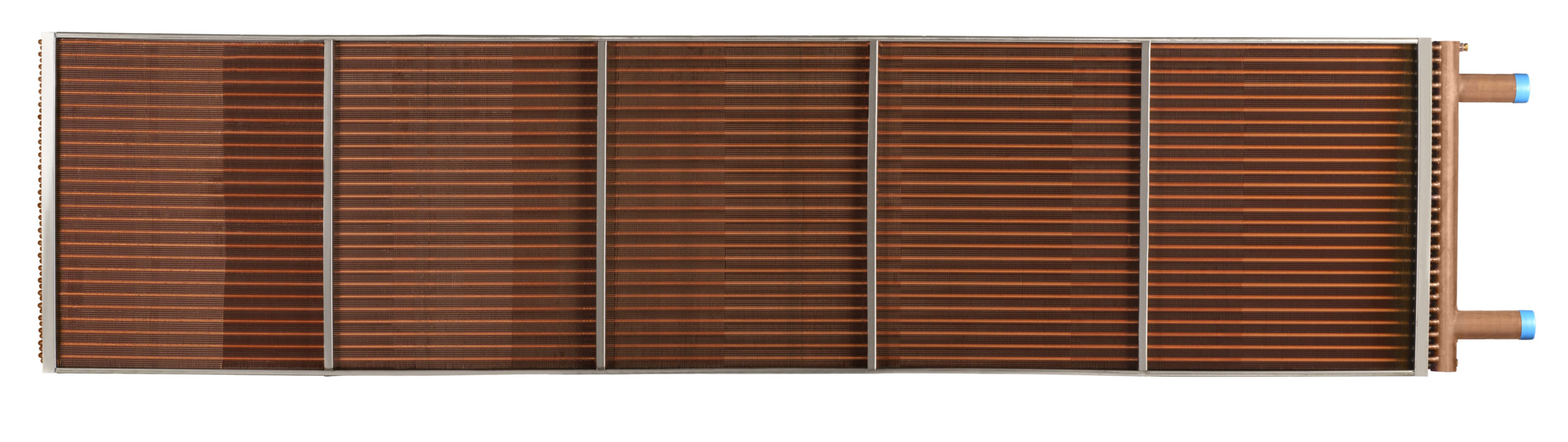

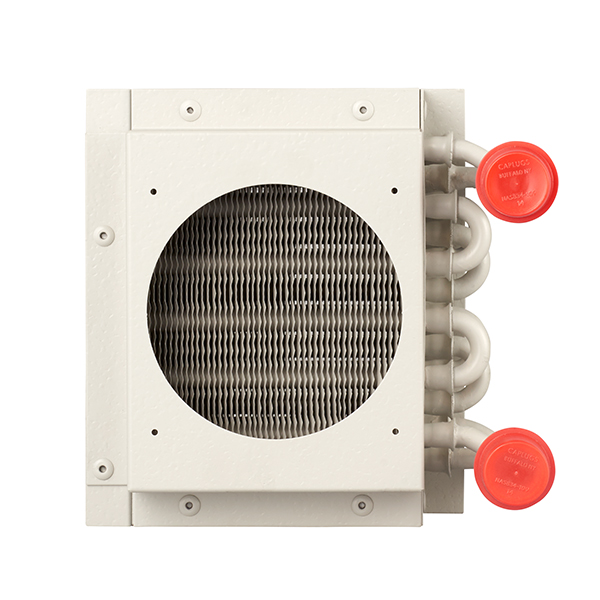

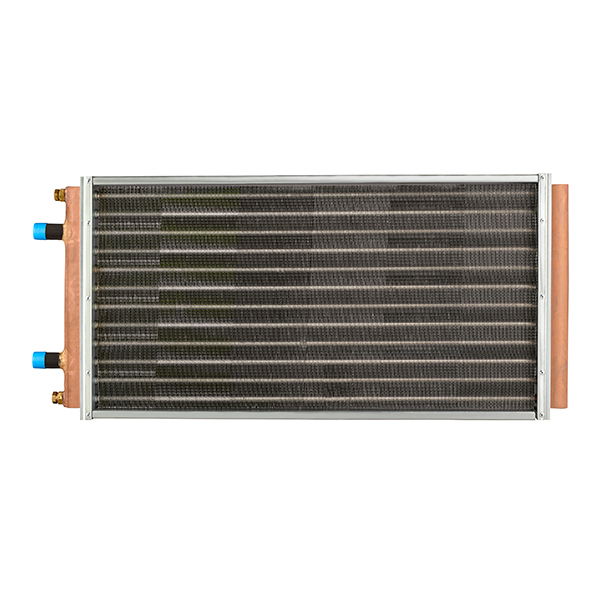

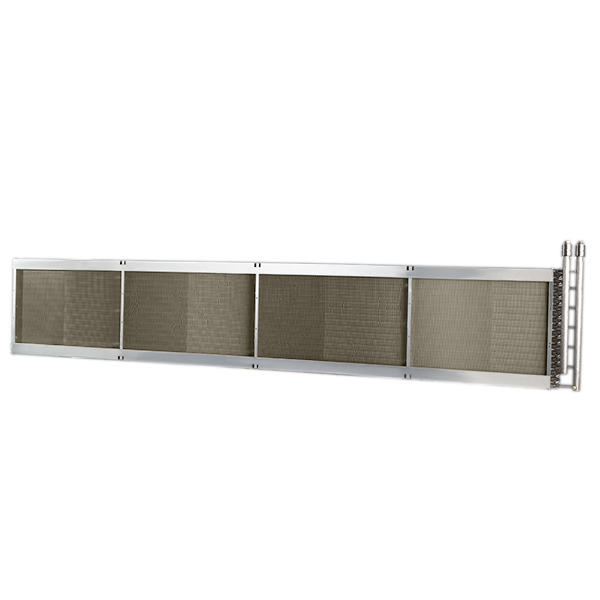

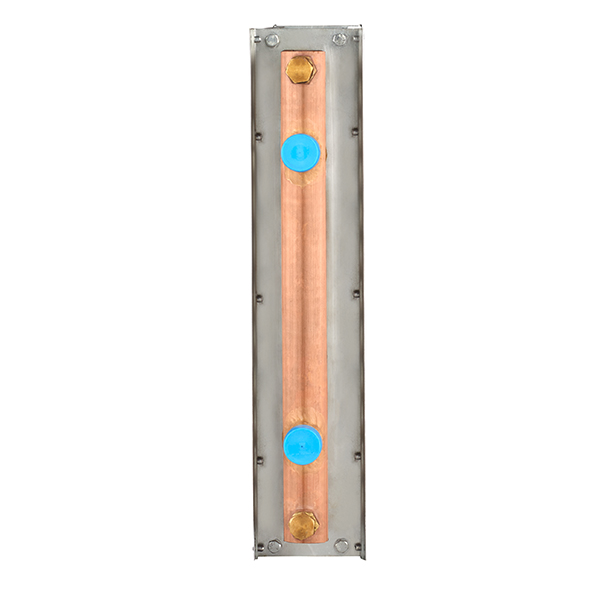

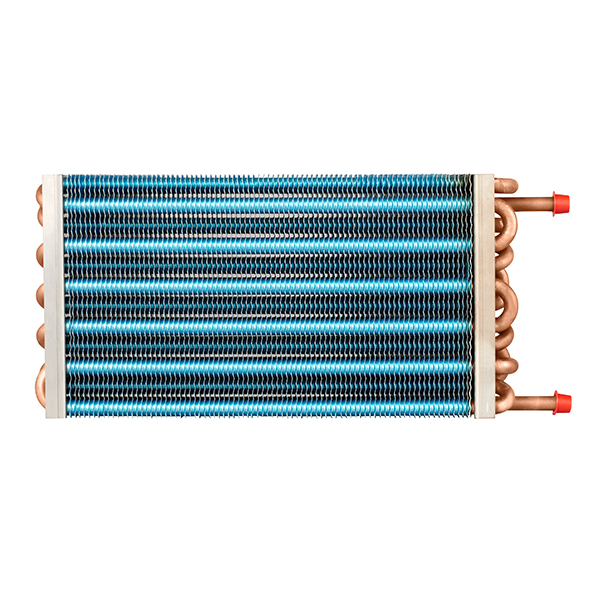

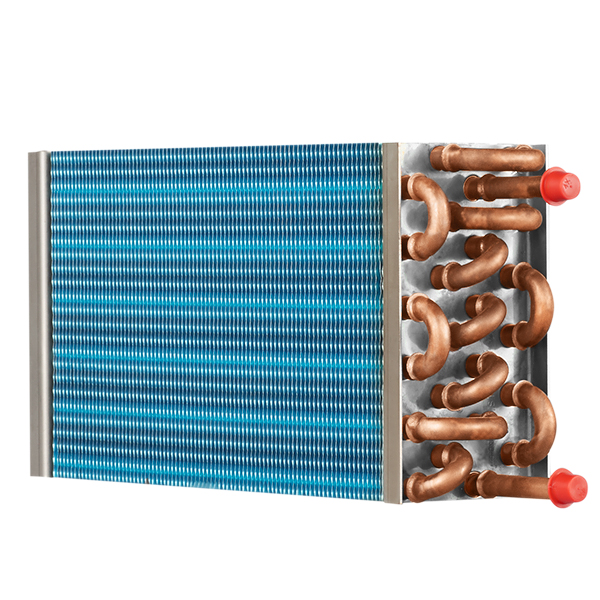

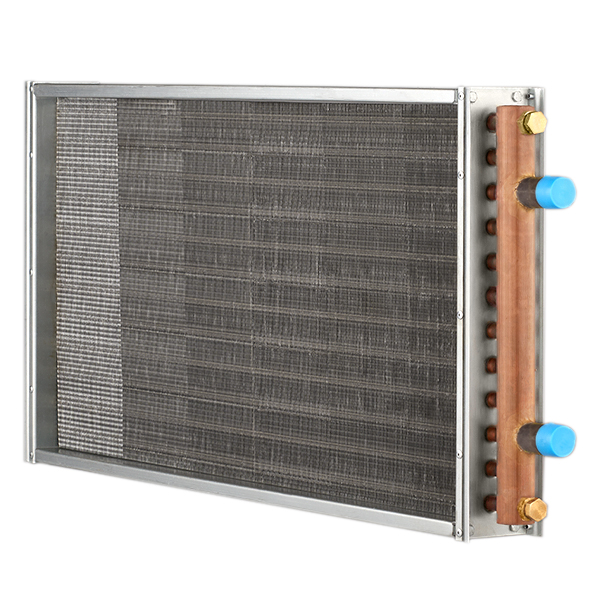

Heatcraft® Fluid Heating and Cooling coils are typically used to heat or cool air within a condition space. They are components of a large air handling system or unit and commonly labeled as an Air Handling Unit (AHU). Heating coils typically have one to four rows of copper tubes and cooling coils – sometimes up to 12 rows or more, depending on the specific requirements for that application. Heatcraft® heat transfer products include a large variety of drainable circuiting options, making these coils a good choice for most HVAC/R heat transfer applications. They can be made for use with water, glycols, brines, thermal oils, or ammonia-based fluid systems.

Air Handling Unit (AHU) coils can be designed and provided for any customer’s specific need. Selections and calculations are easily done using state-of-the art and user-friendly software tools.

When recommending a coil design, we take many factors into consideration. We will work with you to identify the material combination that is best for your application’s environment and atmospheric conditions into which the coil will be placed. We’ll also recommend a frame design according to the installation type, the maximum fin area, and required fin protection.

Fluid Coil Construction Americas EMEA APAC
Tubing 3/8”, 1/2” O.D. Cu & 5/8” O.D. Cu, CuNi, St Stl, Carbon Stl, AD Brass 1/2”, 15mm (P40) O.D. Copper N/A
Circuit Type Quarter, Half, Three Quarter, Single, One and one half, Double, Triple or Custom Upon Request N/A
Rows 1, 2, 3, 4, 5, 6, 8, 10, 12 1, 2, 3, 4, 6, 8, 10, 12 N/A
Fin Surface Sine Wave (corrugated), New Ripple (peak and valley) or Flat Louvered or flat (slightly louvered) N/A
Tube Patterns Various Various N/A
Casing / Mounting Galvanized Steel, Stainless Steel, Carbon Steel, Copper or Aluminum Galvanized Steel, Stainless Steel, AcidProof, AluZink® or Aluminum N/A
Connections Carbon Steel, Stainless Steel, Red Brass, Copper (Braze, MPT, FPT, Victaulic, Welded) Copper, Steel threaded N/A
Vents & Drains Standard Upon Request N/A
Fin Materials Aluminum, Copper all tube sizes                                                Stainless Steel, Carbon Steel – 5/8″ Only Aluminum, Copper, Corropaint (epoxy coated), Pre tinned copper, hydro paint N/A
Options ElectroFin coating, Flanged Conn., Cleanable Tubes, Universal Hand, TurboSpirals, mist eliminator Flanged conn., turned header, L-header, ElectroFin® E-Coat, Heresite® coatings, mist eliminator N/A
Links Fluid Catalog
Fluid Coil Specification
Fluid Coil Installation, Operation and Maintenance
Desaturation Coil Article
Certified Drawing: Cooling Coil > 2Row
Certified Drawing: 1 and 2 Row Fluid Coils
Certified Drawing: Desaturation Coil
Certified Drawing: Cleanable > 2 Row
Certified Drawing: Mist Eliminator
VENTILATION HEAT EXCHANGER
Tube Patterns
N/A
Fluid Coil Construction Americas EMEA APAC
Tubing 5/16″, 3/8”, 1/2” O.D. Cu & 5/8” O.D. Cu, CuNi, St Stl, Carbon Stl, AD Brass Ø 15 mm, Ø 5/16″, Ø 3/8″, Ø 5/8″, Ø 1/2″ 3/8” O.D. Cu & 1/2”, 5/8” O.D. Cu, CuNi, SS
Circuit Type Quarter, Half, Three Quarter, Single, One and one half, Double, Triple or Custom Upon request Quarter, Half, Three Quarter, Single, One and one half, Double, Triple or Custom
Rows 1, 2, 3, 4, 5, 6, 8, 10, 12 1 to 12 (over upon request) 1, 2, 3, 4, 5, 6, 8, 10, 12
Fin Surface Louver, Lance, Sine Wave (corrugated) , New Ripple (peak and valley) or Flat V-Waffle, Sine wave, Special corrugation, Flat, Special flat / Lanced, Louvered, Slit Louver, Sine Wave (corrugated) , New Ripple (peak and valley) or Flat
Tube Patterns Various Various Various
Casing / Mounting Galvanized Steel, Stainless Steel, Carbon Steel, Copper or Aluminum Aluminum, Galvanized Steel, Stainless Steel, AcidProof, AluZink®, Copper, Brass Galvanized Steel, Stainless Steel, Carbon Steel, Brass or Aluminum
Connections Carbon Steel, Stainless Steel, Red Brass, Copper (Braze, MPT, FPT, Victaulic, Welded) Copper, Iron, Steel threaded Carbon Steel, Stainless Steel, Red Brass, Copper (Braze, MPT, FPT, Victaulic, Welded)
Vents & Drains Standard Upon Request Standard
Fin Materials Aluminum, Copper all tube sizes                                                Stainless Steel, Carbon Steel – 5/8″ Only Aluminum, Copper, Pre-painted Aluminum, Tinned copper, Hydrophilic Aluminum, Corropaint Al, AlMg, Copper all tube sizes,
Stainless Steel-5/8″ Only
Options ElectroFin coating, Flanged Conn.,  Cleanable Tubes, Universal Hand, TurboSpirals, mist eliminator ElectroFin® E-Coat, Heresite® coatings, Alt. fin spacing, Bent coils, Flanged conn., Turned or L-header, mist eliminator E-coating, Universal Hand, TurboSpirals
Links Fluid Catalog
Fluid Coil Specification
Fluid Coil Installation, Operation and Maintenance
Desaturation Coil Article
Certified Drawing: Cooling Coil > 2Row
Certified Drawing: 1 and 2 Row Fluid Coils
Certified Drawing: Desaturation Coil
Certified Drawing: Cleanable > 2 Row
Certified Drawing: Mist Eliminator
VENTILATION HEAT EXCHANGER
Tube Patterns
E-coating, Universal Hand, TurboSpirals
