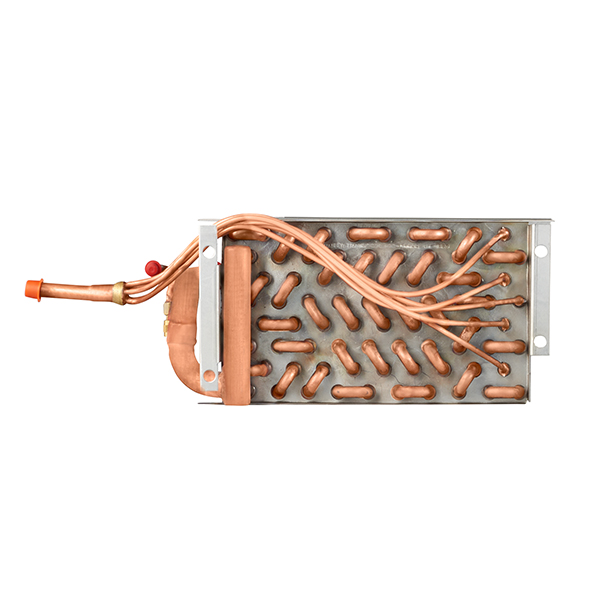

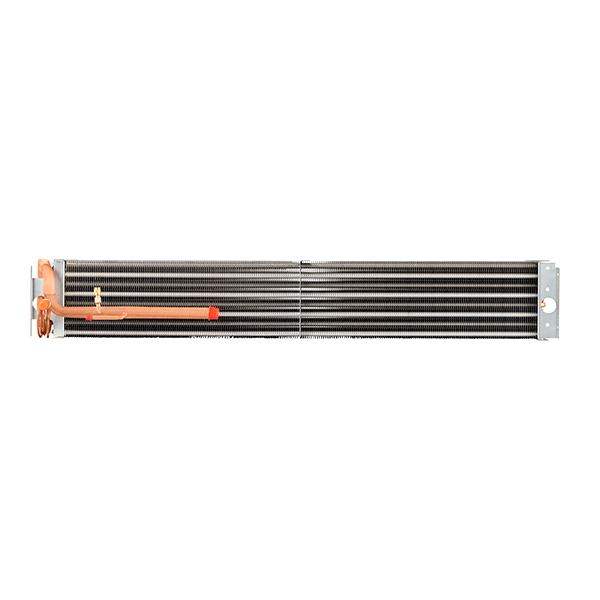

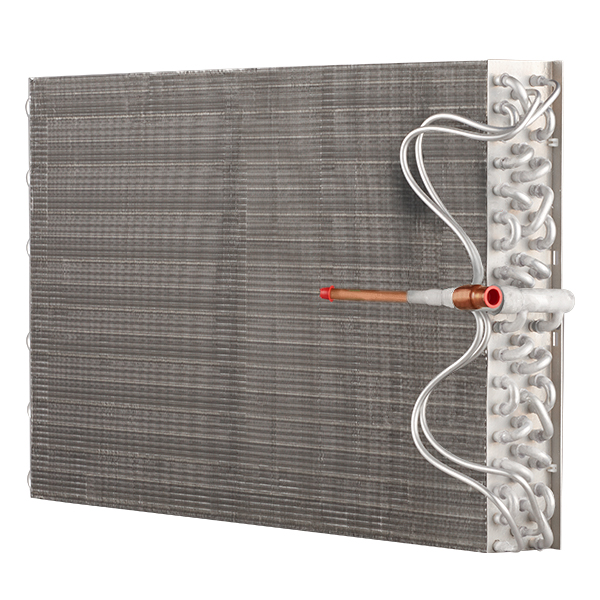

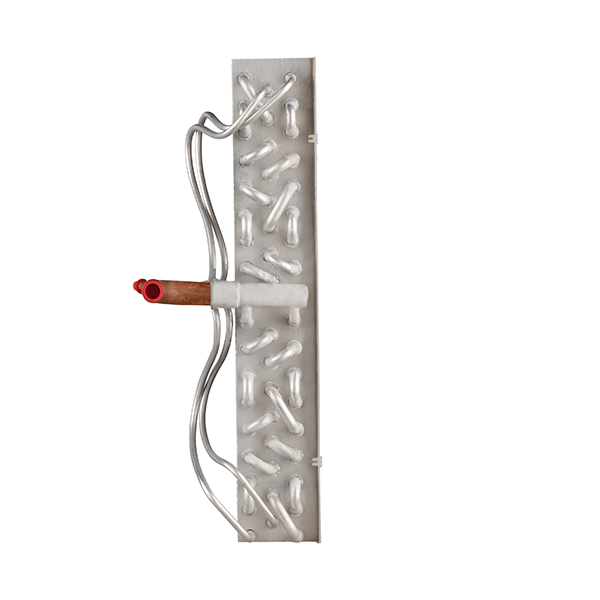

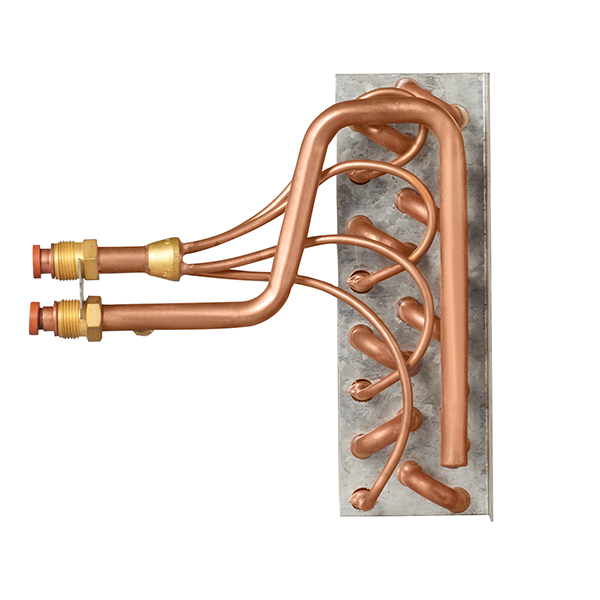

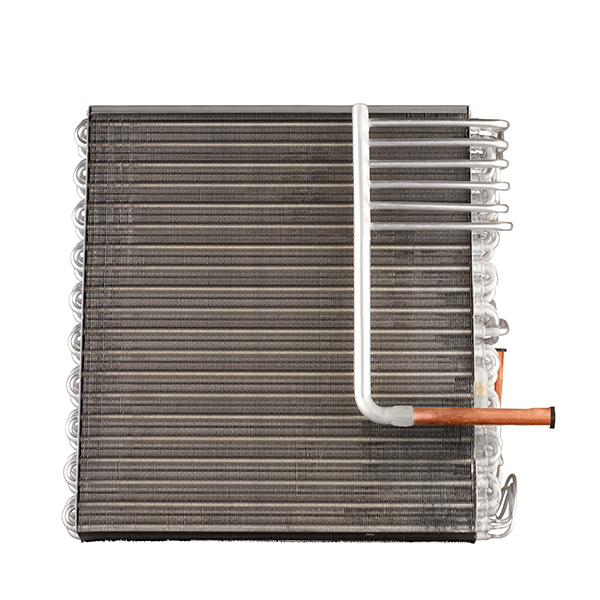

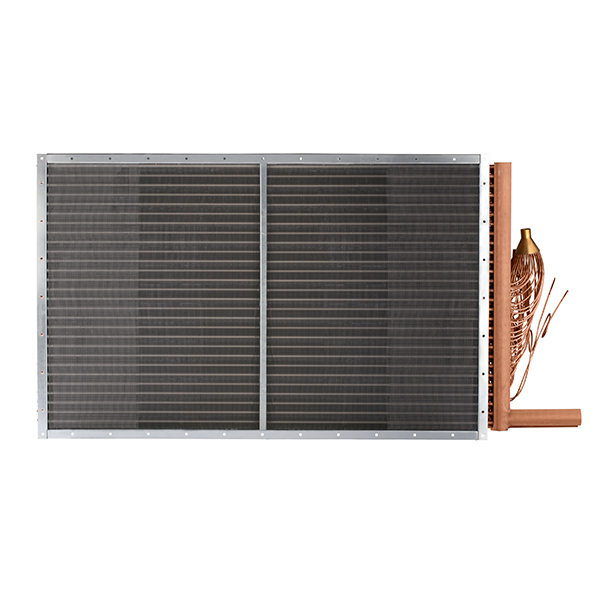

Evaporator Coils RTPF

Evaporator Coils Round Tube Plate Fin

Heatcraft® Evaporator coils are designed and engineered for efficient operation with all refrigerants. The performance capabilities are excellent for comfort cooling, process cooling, and dehumidification applications. Direct expansion type evaporator coils are engineered and designed to deliver the maximum possible heat transfer efficiency under all operating conditions. The wide variety of standard and custom circuiting options offers the opportunity to provide the best circuit for peak system performance. Counter flow circuitry is applied whenever possible, and all evaporators can be supplied with distributors and equal length distributor tubes to assure proper refrigerant distribution. Circuiting for face, row, or custom control is also available on a wide variety of coils.

Single, dual, or quad compressor circuits allow precise capacity control. Unique interlaced circuiting options assure uniform refrigerant distribution over the entire face area of the coil. Available wide fin spacing reduces the effect of frost build-up on low temperature applications. Evaporators are designed for use in AHU, central systems, or duct applications.

Evaporator Coil Construction Americas EMEA APAC
Tubing 3/8”, 1/2” O.D. Cu & 5/8” O.D. Cu, CuNi, AD Brass 1/2”, 15mm (P40) O.D. Copper N/A
Circuit Type Single or multiple compressor circuit Upon request N/A
Distribution Control Single, face, row, interlaced, interlaced & face 1,2,3 stages. 2 stage in height or interlaced. 3 stages in height N/A
Rows 2, 3, 4, 5, 6, 8, 10, 12 2, 3, 4, 6 N/A
Fin Surface Sine Wave (corrugated) , New Ripple (peak and valley) or Flat Louvered or flat (slightly louvered) N/A
Tube Pattern Various Various
Casing / Mounting Galvanized Steel, Stainless Steel, Carbon Steel, Copper or Aluminum Galvanized Steel, Stainless Steel, AcidProof, AluZink® or Aluminum N/A
Connections Various Copper N/A
Fin Material Copper, Aluminum, Pre-Coated;  Hydrophilic, Corrosive resistant Al, Cu, Corropaint (epoxy coated), tinned copper, hydro paint
Options Side port connection, Electrofin coating, Ammonia construction ElectroFin® E-Coating, Heresite® Coatings N/A
Links Evaporator Catalog
Evaporator Coil Installation, Operation and Maintenance
Evaporation Coil Specification
Certified Drawing Evaporator Coil
VENTILATION HEAT EXCHANGER
Tube Patterns
N/A
Evaporator Coil Construction Americas EMEA APAC
Tubing 5mm, 1/4″, 7mm,  5/16″, 3/8”, 1/2” O.D. Cu & 5/8” O.D. Cu, CuNi, AD Brass 5mm, 7mm, 7.2mm, 12mm, 15mm,  5/16″,  3/8″,  5/8″,  1/2″ 5mm, 7mm, 7.2mm, 5/16″, 3/8”, 1/2” & 5/8” O.D. Copper & 5/8″ O.D. St Stl
Circuit Type Single or multiple compressor circuits or custom Upon request As requested supporting single or multiple compressor circuits
Distribution Control Face, row, interlaced, interlaced & face or custom Upon request Face, row, interlaced, interlaced & face or custom
Rows 2, 3, 4, 5, 6, 8, 10, 12 From 1 to 6 (over upon request) 2, 3, 4, 5, 6, 8, 10, 12
Fin Surface Louver, Lance, Sine Wave (corrugated) , New Ripple (peak and valley) or Flat V-Waffle, Sine wave, Flat / Louvered, Lanced, Slit Louvered, Sine Wave (corrugated) , New Ripple (peak and valley) or Flat
Tube Pattern Various Various Various
Casing / Mounting Galvanized Steel, Stainless Steel, Carbon Steel, Copper or Aluminum Al, Galvanized or Stainless Steel, AcidProof, AluZink®, Cu, Brass Galvanized Steel, Stainless Steel, Carbon Steel, Copper or Aluminum
Connections Braze, Flare, Fitting, Other Customer Specified Copper, Iron Braze, Flare, Fitting, threaded (steel, brass)
Fin Material Aluminum, Copper, Pre-coated; Hydrophilic, Corrosion resistant, Epoxy Al, Cu, Pre-painted Al, Tinned Cu, Hydrophilic Al, Corropaint Aluminum, Copper, Corropaint (epoxy coated), hydro paint
Options Side port connection, Electrofin coating, Ammonia construction ElectroFin® E-Coat, Heresite® coatings, Alt fin spacing, Bent coils Side port connection, E-Coat
Links Evaporator Catalog
Evaporator Coil Installation, Operation and Maintenance
Evaporation Coil Specification
Certified Drawing Evaporator Coil
VENTILATION HEAT EXCHANGER
Tube Patterns
N/A
